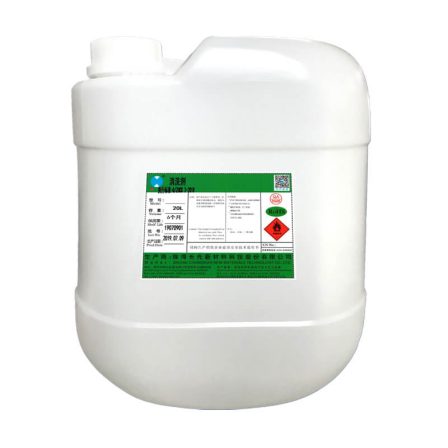

CX303 water base PCB cleaner

Description

CX303 water-base cleaner  is mainly made of deionised water, high boiling point ether materials, volatile surfactants by careful compounding, is a completely neutral cleaning agent, is one of the best alternatives to the application of solvent-based cleaning agents in the electronics industry, CX303 water-based cleaning agent for cleaning rosin-based flux, no-clean flux, water-soluble flux, solder paste, red glue and other residues with excellent results, can be widely It can be widely used for cleaning flux residues of PCB boards, stencil solder paste, red glue residues, etc. The surface of the workpiece cleaned by this product is very clean after the cleaning agent evaporates. This product also has the characteristics of low toxicity, low odour, high cleaning load and long product life.

Technical indicators.

1、Specific gravity (g/cm3) at 25℃ ：0.97±0.02

2、Surface tension（mN/m）at 25℃：42.6

3、Boiling point (℃): 100-230

4、Flash point：60℃

5、PH value (10% aqueous solution): 7.00±0.5

6、Vapour pressure (mbar) at 25℃：88

7、Operating temperature (℃): 20-90℃, best 40-80℃

8、Solubility in water：Mutually soluble in water

9、Using concentration: 10%-original liquid, stencil solder paste cleaning recommended 25%-50%, red glue residue cleaning recommended 40%-original liquid, PCB board flux residue cleaning recommended concentration 10%-20%, cleaning working solution is best continuous filtration.

Use and maintenance.

1, mainly used for PCB board flux residue cleaning, stencil solder paste and red glue cleaning, etc.

2、It is best to heat to 40-80℃ for better effect, best to use with ultrasonic.

3、After cleaning with CX303, there is no need to rinse with deionized water, there is no residue after the cleaning agent evaporates.

Note: The above manual data is test data, customers need to test according to specific products and material characteristics and apply according to the relevant data, the company guarantees the consistency of samples and products.
